Product Dimensions 14"h x 30"w x 12.5"d

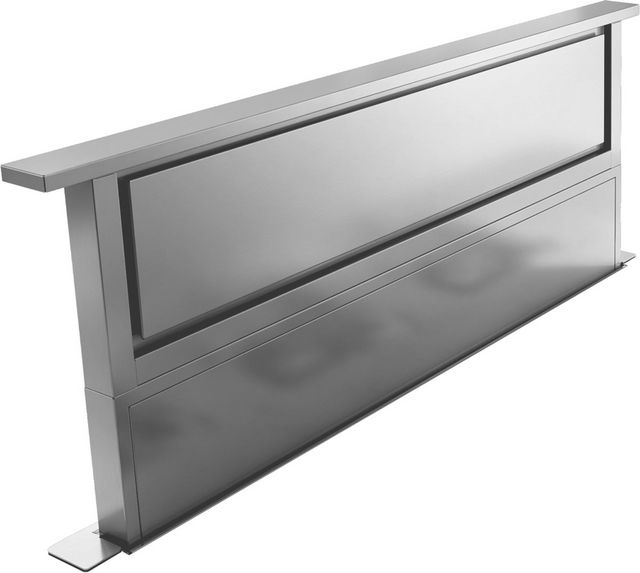

When the view out your kitchen window is too spectacular to disrupt with a range hood, Elica’s Rise is the perfect solution. Rise recesses completely out-of-sight into the countertop (when not in use), but when it’s time to cook, Rise elevates a full 14” above the countertop (almost twice the height of competitors), for added ventilating efficiency. On top of that, Elica added Perimeter Aspiration Technology, which increases suction 35% and actually draws air from the front burner effectively, to create the best functioning downdraft on the market. Rise comes equipped with a powerful 600 CFM internal blower, which is operated by an electronic rotating control that’s flush mounted into the countertop or cabinet face. For maximum flexibility, the blower can be rotated to the opposite side to make room for a floor mounted range.Read More
Perimeter aspiration - This extraction system is distributed along the entire perimeter of the hood, delivering exceptional efficiency. A concealed panel covers the extraction area, adding a touch of pure elegance to your kitchen hood.
Top performance - Excellent performance for models equipped with this plus. High fume capturing capacity with an average aspiration range of 600 CFM's. with low noise levels, 1.2 - 1.7 sones at working speed.
General Specs | |
| Color | Stainless Steel |
| Color-Finish Name | Stainless Steel |
| Color/Finish Name | Stainless Steel |
| Range Hood Type | Downdraft |
| Ventilation Type | Ducted |
| Ventilation Direction | Downdraft |
| Vent Location | Side |
| Grease Filter Type | Aluminum Mesh |
| Duct Size (in.) | 6" Round |
| Sones Rating | 6.8 |
| Noise Level (Sones) | Standard - (High) |
| Maximum CFM | 600 |
| Smart Compatible | No |
| Fan Speed Options | 4 |
| Outdoor Approved | No |
| Appliance Fit Width (in.) | 30 |
| Width (in.) | 30 |
| Height (in.) | 14 |
| Depth (in.) | 12.5 |
| Height Above Cooktop | 30 |
| Height Above Cooktop Centimeter | 76.20 |
| Shipping Width (in.) | 35 |
| Shipping Depth (in.) | 35 |
| Shipping Height (in.) | 16.1 |
| Product Weight (lbs.) | 85.98 |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Collection | Techne Series Rise |
| Manufacturer Warranty | 3 Year Parts & Labor |
| Voltage | 120 |
| Amp | 3.6 |
| Frequency | 60 |
Overview | |
| Noise (sones) | Min: 1.9, Max: 8.0 |
| Duct Transition | 6” Round with Back Draft Damper (side) |
| Installation Type | Ducted Installation only |
| Product Material | Stainless Steel |
