Don’t let the size of your TV dictate where you put it. Capable of supporting panels up to 120”, PMX800 adjustable wall mount can be horizontally offset 11” in either direction to dial in the lateral placement of your display. An oversized 900×600 VESA interface improves compatibility with extra-large touch screens and provides flexibility for vertical positioning.Read More
Please contact our store for more details and availability timelines.
With 31.3” of extension, this full motion wall mount gives you all the swivel needed to get the perfect viewing angle. Its low-profile design allows your TV to sit 2.6” from the wall when fully retracted and features all-metal cable management and lag bolt covers to stand the test of time. Toolless tilt rounds off PMX800’s extensive feature set allowing for on-the-fly adjustments.
Whether you’re designing the ultimate home theatre, or installing interactive touch panels, PMX800’s 200 lb. weight capacity ensures compatibility with displays of any size.
Even if your studs are in a suboptimal position, you can still nail your TVs placement with 22 total inches of horizontal offset. Oversized TV brackets provide flexibility to achieve the perfect height.
The unique design of this articulating wall mount allows your TV to sit 2.6 inches from the wall when fully pushed in.
Easily reach over fireplaces or out of recessed locations with 31.3” (79.5 cm) of extension.
A toolless cam lever tilt mechanism allows for on-the-fly adjustments. Tilt your screen forward up to 12 degrees or backwards 3 degrees
Maintain a clean, finished appearance while hiding any sign of installation with the aluminum wall plate covers on this fully featured TV wall mount.
Achieve the best viewing angle regardless of where you’re sitting by swivelling your TV up to 90 degrees left or right, depending on screen size.
PMX800’s cable management system is made of metal to stand up to regular use and reduce potential service calls.
Because every installation is unique, this pro series full motion wall mount is carefully packaged with all the hardware you could need. Choose between a variety of bolt diameters and lengths, as well as several spacers to perfectly fit your TV. Lag bolts and concrete anchors are also provided for both wood studs and concrete walls.

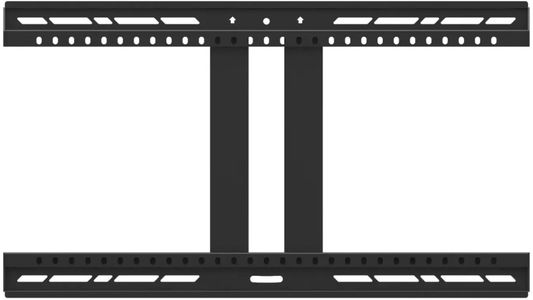

Each mount includes a carefully packaged box containing all the lag bolts, anchors, washers, spacers and screws needed for installation. An included drill template makes marking holes for installation pain-free.
General Specs | |
| Product Weight (lbs.) | 48.3 |
| Tilt | Yes |
| Mount Type | Full Motion (Articulating) |
| Low Profile | No |
| Color/Finish Name | Black |
| TV Size's up to (in.) | 120 |
| Weight Capacity (lbs.) | 200 |
| Mounting Location | Wall |
| Compatible Vesa Sizes | 200 x 100 - 900 x 600 |
| Manufacturer Warranty | 10 Year Parts & Labor |
| Collection | PMX800 Pro |
| Color Finish Name | Black |
| Number Of Mounts | 1 |
